Model                                   SH-G690 laser cutting machine

Laser power                         60W/RECI80W

Standard Focus lens                  diameter: 18mm, focus length: 40mm;

Laser type Hermetic CO2 glass tube/RECI

Power supply                        AC220±10%50 HZ/AC110±10% 60HZ

Working area 900*600mm

Max moving speed 0-40000mm/min

Laser energy control 1-100 set by hand or software

Worktable motorized up and down worktable,

                                     Honeycomb table,aluminum blade table

Locating precision <0.01mm

Min shaping character                 Character: 1.5x1.5mm,

Letter: 0.7x0.7mm

Operating temperature 5℃-35℃

Resolution ratio 4500dpi

Control configuration DSP

Data transfer interface USB (offline)

System environment            WINDOWS 2000/WINDOWS XP/vista/Win7

Cooling way Water cooling and protection system

Graphic format supported The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,

DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SV SVGZ,PCT,FMV,GEM,CMX)

Compatible software CorelDraw, AutoCAD

Cutting thicknes              0-20mm(RECI 80W)                               (depends on different materials)

Color separation Separation of cutting up to 256 colors

Sloping engraving Yes, slope can be designed discretiarily

Cuts off the water supply the protection yes

Red dot pointer                        yes

Packing Plywood case

Package dimension                   1600x1140x1300mm/360kg

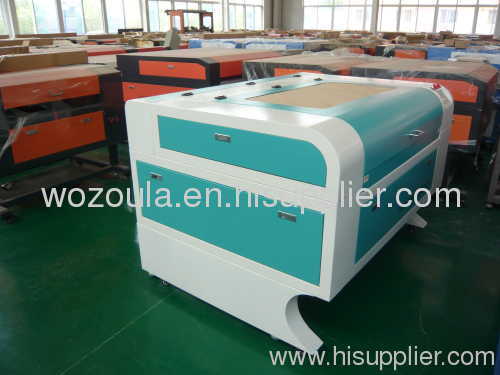

Machine Photos:

The accessories equip with the machine:

1)  Laser cutter machine            1x80w RECI tube

2)  Size of cutting area               900*600mm

3)  Color                           according to your request

4)  Cutting table type                1x motorized up and down worktable

                                  1x Honeycomb table,

1xaluminum blade table

5)  Cooling system                  1x general water pump

6)  Air compressor                  1

7)  1x150mm flexible exhaust outlet pipe

8)  1x100mm flexible exhaust outlet pipe

9)  All inlet and outlet water pipes

10)  2xPower lead wire

11) 1xExhaust blower fan       1x330W

12) 1xSoftware installations CD, CorelDraw AutoCAD software

13) 1xoperating/maintenance/service manual

14) 1xSpanner and tools set

15) 1xPaper for adjusting laser light way

16) 1xUSB control line

17) 1xSilicone
